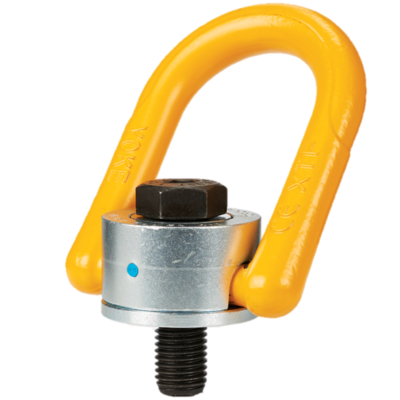

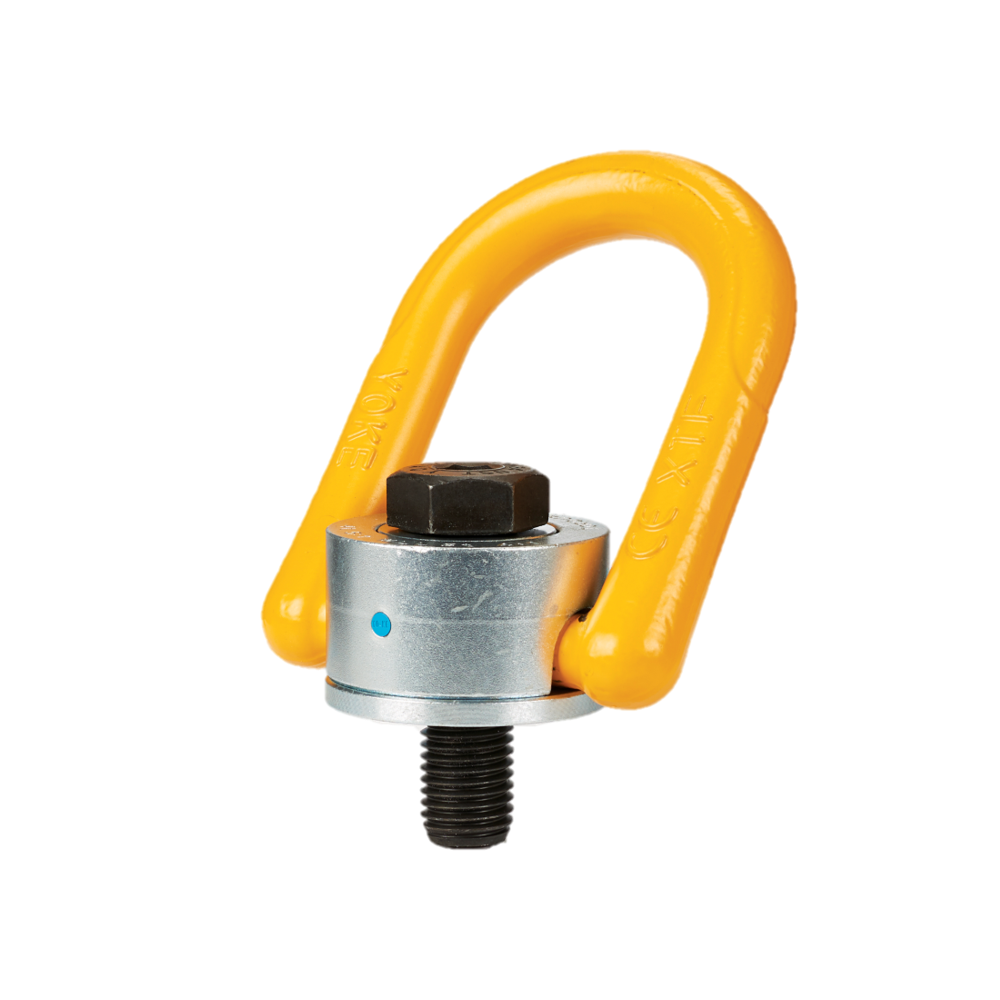

Swivel Hoist Ring 8-231

  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Me

Show more

Product number:
  • The product is equipped with RFID chip
  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
  • Features: Built-in RFID/NFC chip
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Painted
  • Standard: EN 1677-1
  • Safety factor: 4:1

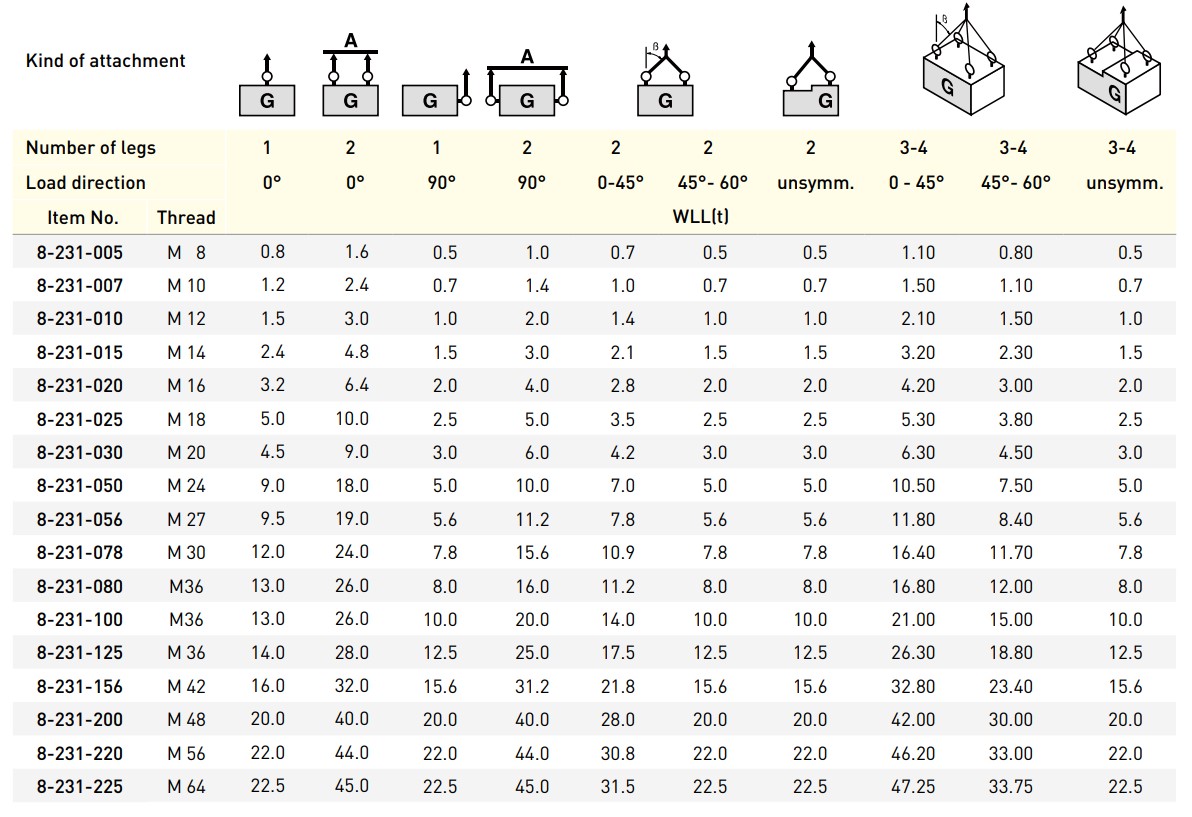

Lifting method  Lifting Chart 1   Lifting Chart 2   Lifting Chart 3   Lifting Chart 4   Lifting Chart 5

 Lifting Chart 7

 Lifting Chart 6
 Lifting Chart 8
No of legs
1
2
1
2
2
2
3-4
3-4
2
3-4
Angle of
inclination
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
unsymm.
unsymm.
Thread Load capacity (ton)
M 8
0,8
1,6
0,5
1
0,7
0,5
1,1
0,8
0,5
0,5
M 10
1,2
2,4
0,7
1,4
1
0,7
1,5
1,1
0,7
0,7
M 12
1,5
3
1
2
1,4
1
2,1
1,5
1
1
M 14
2,4
4,8
1,5
3
2,1
1,5
3,2
2,3
1,5
1,5
M 16
3,2
6,4
2
4
2,8
2
4,2
3
2
2
M 18
5
10
2,5
5
3,5
2,5
5,3
3,8
2,5
2,5
M 20
4.5
9
3
6
4,2
3
6,3
4,5
3
3
M 24
9
18
5
10
7
5
10,5
7,5
5
5
M 27
9.5
19
5,6
11,2
7,8
5,6
11,8
8,4
5,6
5,6
M 30
12
24
7,8
15,6
10,9
7,8
16,4
11,7
7,8
7,8
M 36
14
28
12,5
25
17,5
12,5
26,3
18,8
12,5
12,5
M 42
16
32
15,6
31,2
21,8
15,6
32,8
23,4
15,6
15,6
M 48
20
40
20
40
28
20
42
30
20
20
M 56
22
44
22
44
30,8
22
46,2
33
22
22
M 64
22,5
45
22,5
45
31,5
22,5
47,3
33,8
22,5
22,5
