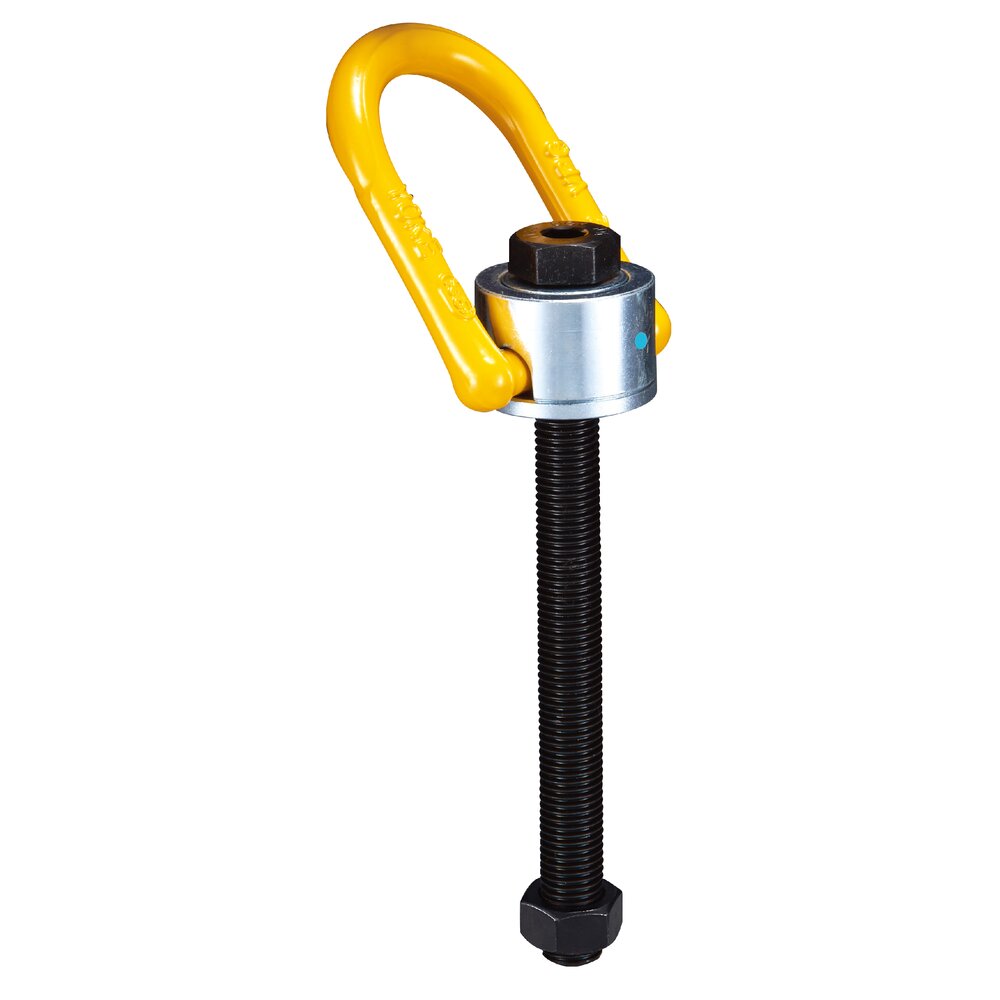

Swivel Hoist Ring 8-231 Long Bolt

E-mail Get PDF

This swivel hoist ring rotates through 360° and pivots 180°, and simultaneously allows lifting  from any direction.

  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M)

Show more

Show all variants

Product number:
  • The product is equipped with RFID chip

This swivel hoist ring rotates through 360° and pivots 180°, and simultaneously allows lifting  from any direction.

  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Quick and simple assembly, just a tapped hole is required.
  • Features: Built-in RFID/NFC chip
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Safety factor: 4:1

Filters & subcategories

Show results

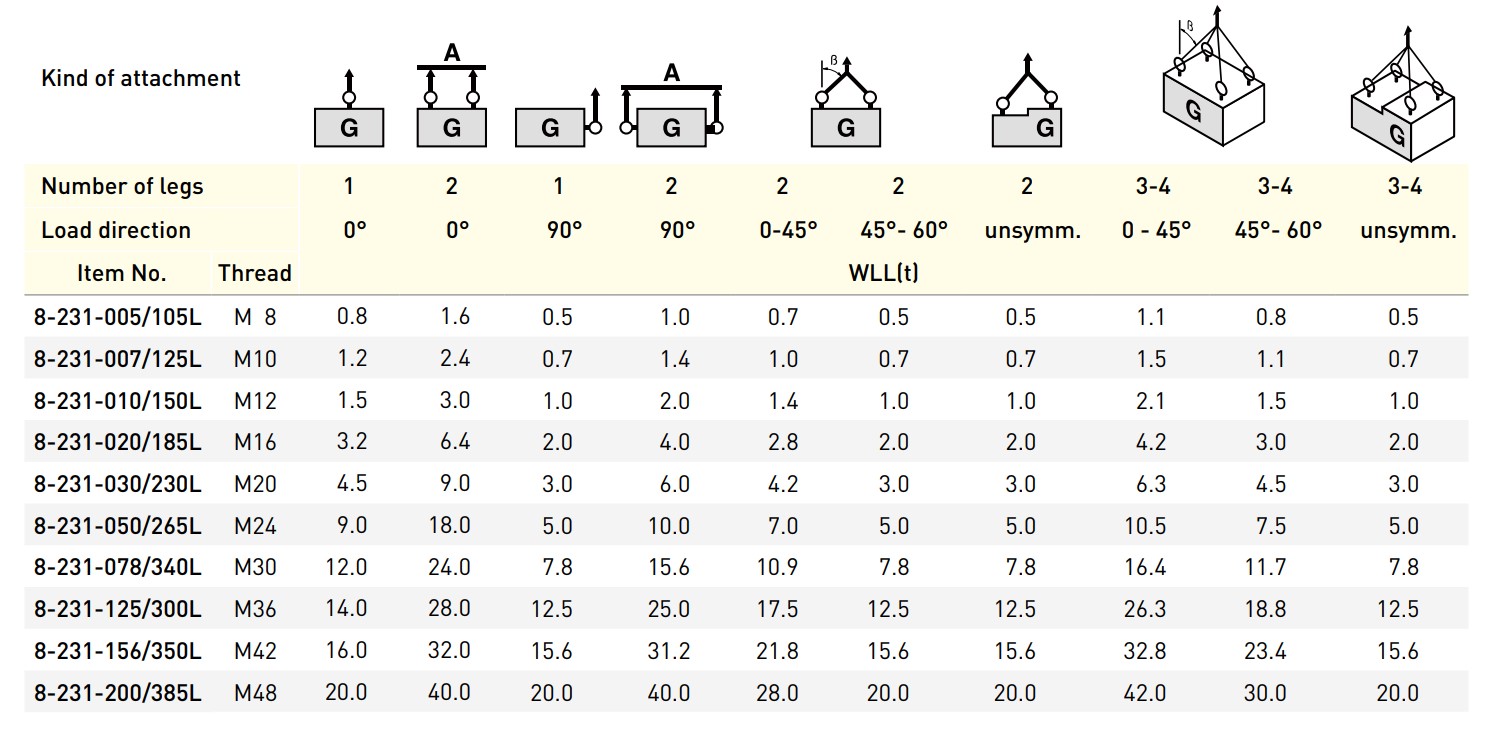

Lifting method Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5 Lifting Chart 6 Lifting Chart 7 Lifting Chart 8
No of legs   1 2 1 2 2 2 2 3-4 3-4 3-4
Angle of inclination   0 0 90 90 0-45 45-60 unsymm. 0-45 45-60 unsymm.
Thread         Load capacity (ton)
M8   0,8 1,6 0,5 1 0,7 0,5 0,5 1,1 0,8 0,5
M10   1,2 2,4 0,7 1,4 1 0,7 0,7 1,5 1,1 0,7
M12   1,5 3 1 2 1,4 1 1 2,1 1,5 1
M16   3,2 6,4 2 4 2,8 2 2 4,2 3 2
M20   4,5 9 3 6 4,2 3 3 6,3 4,5 3
M24   9 18 5 10 7 5 5 10,5 7,5 5
M30   12 24 7,8 15,6 10,9 7,8 7,8 16,4 11,7 7,8
M36   14 28 12,5 25 17,5 12,5 12,5 26,3 18,8 12,5
M42   16 32 15,6 31,2 21,8 15,6 15,6 32,8 23,4 15,6
M48   20 40 20 40 28 20 20 42 30 20
