Pulley Man PM300-600

The Pulley Man, with its 4 kg, is easy to carry. This winch can be installed in three ways, rotates 360 degrees and has an infinite cable.


  • Light weight and portable

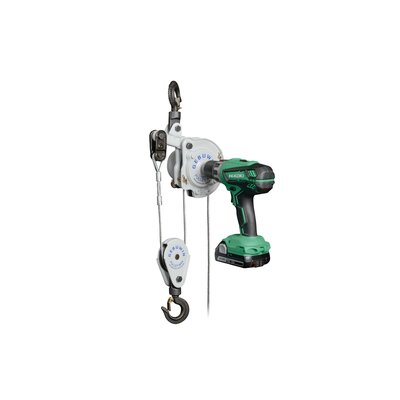

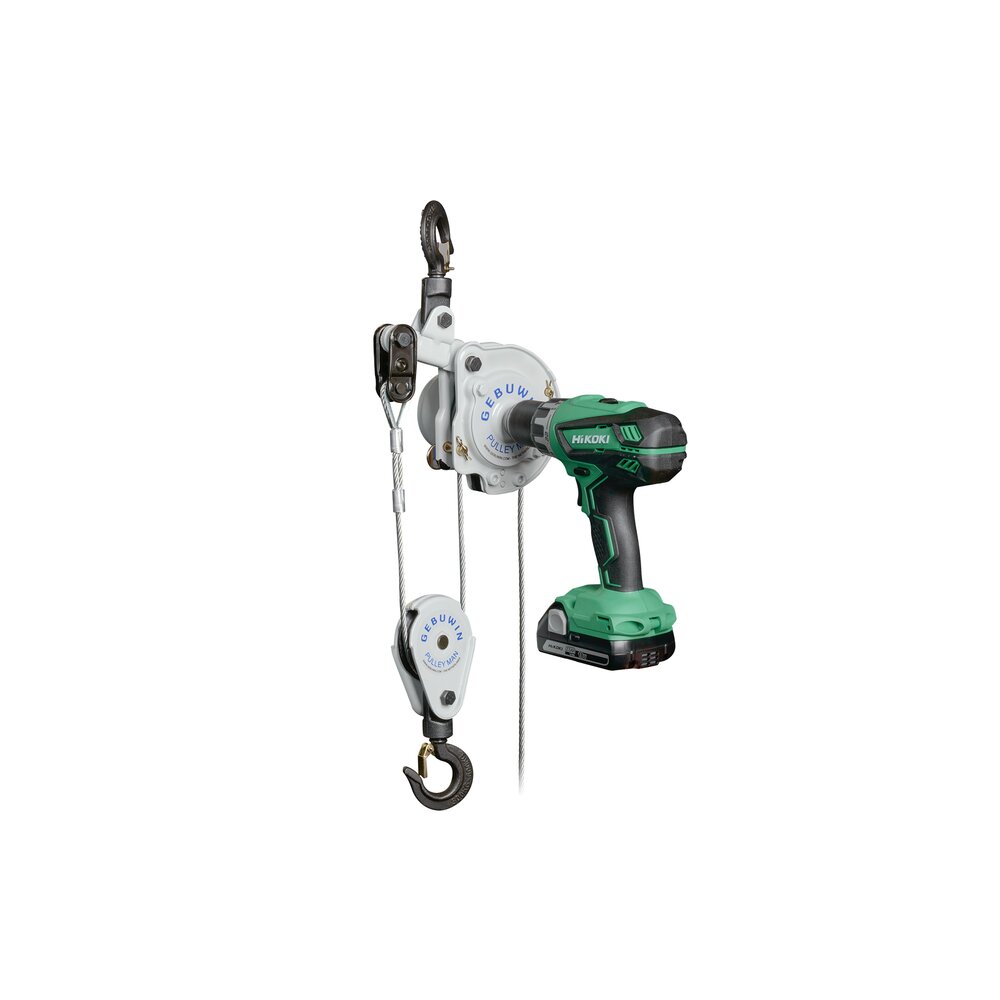

  • Suitable to lift loads up to 600 kg (PM600)
  • Suitable to pull loads up to 3000 kg
  • Can be used with a cordless drill and pow

Show more

Product number:

The Pulley Man, with its 4 kg, is easy to carry. This winch can be installed in three ways, rotates 360 degrees and has an infinite cable.


  • Light weight and portable
  • Suitable to lift loads up to 600 kg (PM600)
  • Suitable to pull loads up to 3000 kg

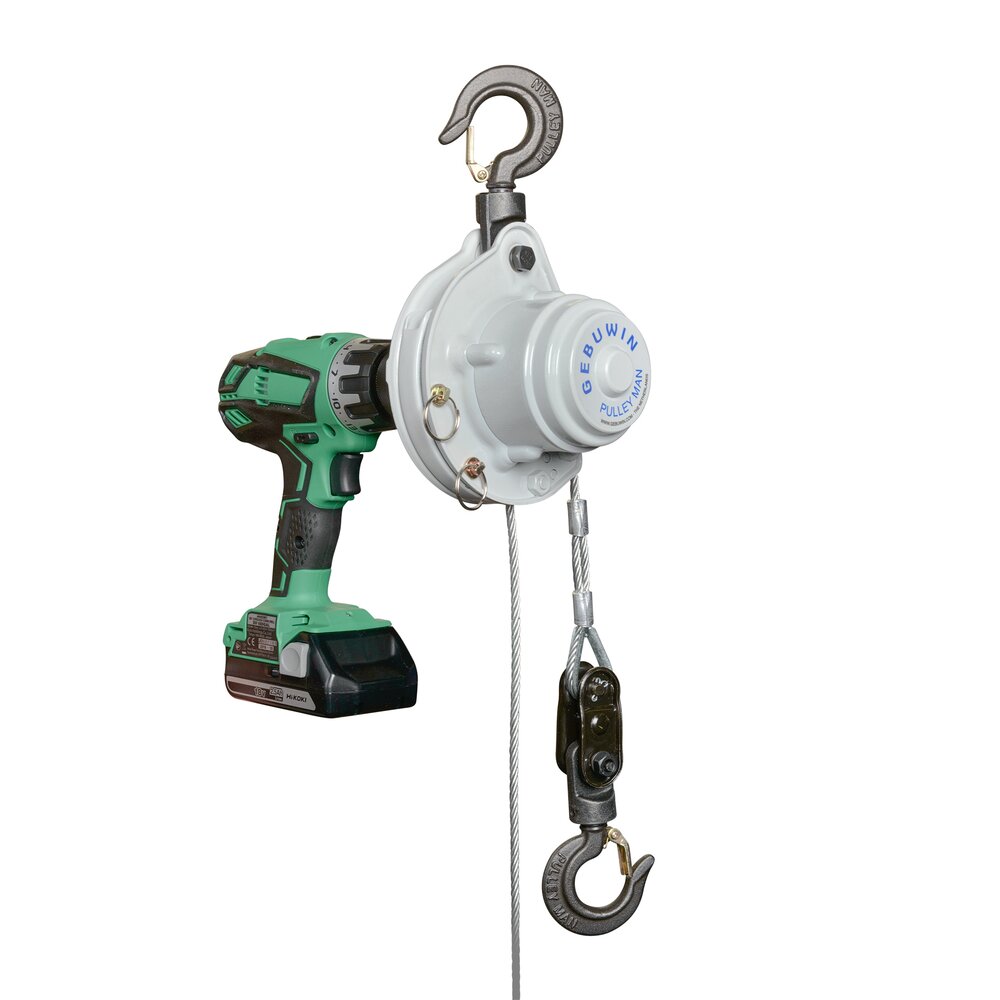

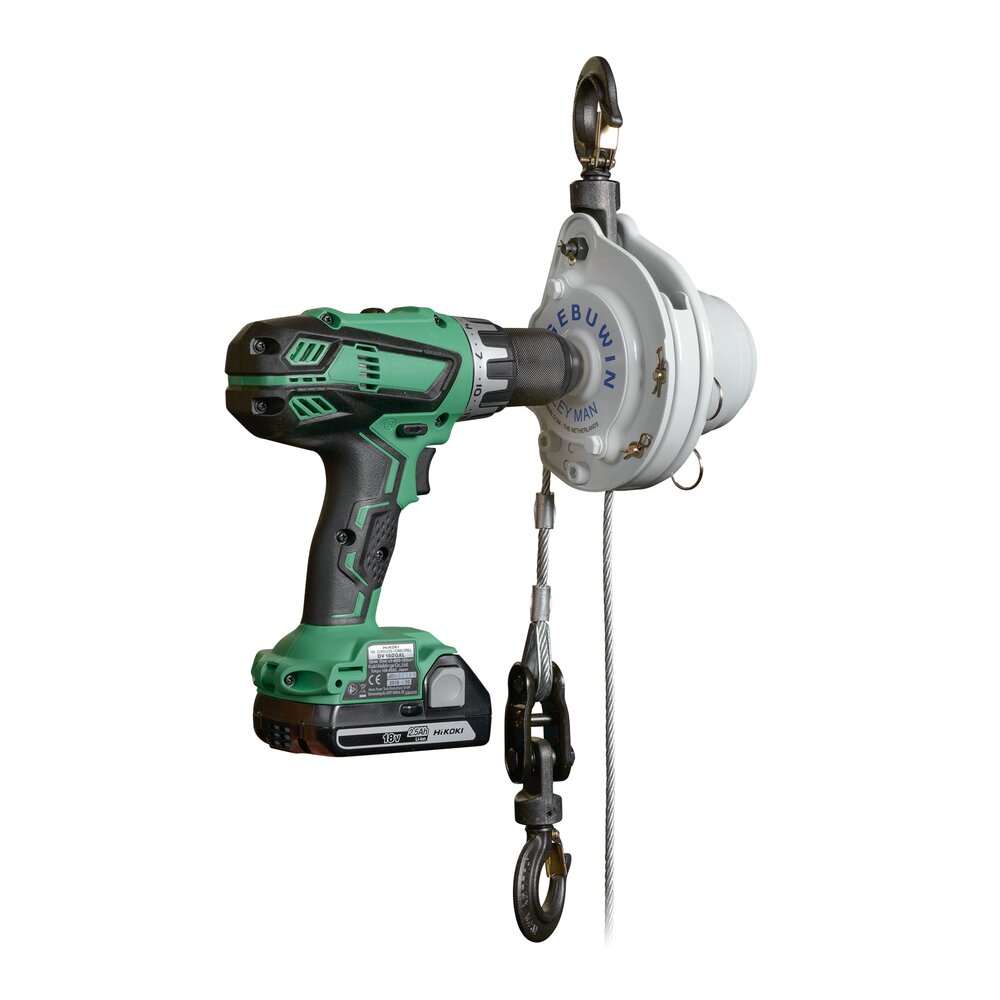

  • Can be used with a cordless drill and power drill
  • Possible to rotate the load 360°
  • Cable length unlimited in traction.
  • Cable length limited to 50 m in lifting (beyond 12 m, loss of 10% of lifting force per 10 m section).
  • Standard rope length 12 meters
  • Patented self-braking reduction brake
  • 1 layer of paint






  • Marking: CE-marked
  • Note: See the pulling capacities in the technical data tab

Maximum loading capacity at wheeled traction on a plane  surface depending on the slope

Gradient

PM300

kg

PM600

kg

1500 3000
12° 975 1950
16° 825 1650
27° 585 1170
35° 450 900
