Electric wire hoists 230 V / 50 Hz

Light and powerful electrical winch with height limit switch and rotating hook. Available also with longer control cables.

Optional wireless remote control:

  • range 50 m (unobstructed visibility)
  • functions: lift, lower and emergency stop
  • IP65
  • operating temperature -10 - (+)70°C
  • size 190

Show more

Part Code:

Light and powerful electrical winch with height limit switch and rotating hook. Available also with longer control cables.

Optional wireless remote control:

  • range 50 m (unobstructed visibility)
  • functions: lift, lower and emergency stop
  • IP65
  • operating temperature -10 - (+)70°C
  • size 190 x 70 x 50 mm
  • 4 x AA batteries
  • Product code: VAINOSHKAUKO
  • Features: IP54
  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, blue

DIMENSIONS

Product Control cable
m
Electric cable
m
Body width
mm
Body depth
mm
Body + chain min height
mm
VAINOSH230 7 5 240 180 660
VAINOSH300 7 5 240 210 670
VAINOSH500 7 5 240

SPARE PART STEEL WIRE ROPES

Product Lenght
m
  Prodict code
Wire rope 5 mm 30 Thimble + preventer VAINOSH230VA
Wire rope 7 mm 30 Thimble + preventer VAINOSH500VA

SPARE PARTS

Spare part (product code) Description Suitable for hoist (product code/-s)
KAPULA1 Pendant control for VAINOSH230/-300/-500 VAINOSH230, VAINOSH300, VAINOSH500
VAINOSHKJOHT Control cable, assembly | Incl. cable and pendant control | Plug in the other end VAINOSH230, VAINOSH300, VAINOSH500
VAINOSHKAAP Control cable extension, length 10 m | Plugs in both ends VAINOSH230, VAINOSH300, VAINOSH500
VAINOSHVJOHT Power cable | Plugs in both ends, different type VAINOSH230, VAINOSH300, VAINOSH500
VAINOSH230AKO Bottom hook set | Incl. fixing pins VAINOSH230
VAINOSH230YKO Top hook set VAINOSH230
VAINOSH300AKO Bottom hook set | Incl. fixing pins VAINOSH300, VAINOSH500
VAINOSH300YKO Top hook set VAINOSH300, VAINOSH500
VAINOSHKAUKO Cordless remote control VAINOSH230, VAINOSH300, VAINOSH500
VAINOSHOS24 Bridge type regulator | Part no. 24 VAINOSH230, VAINOSH300, VAINOSH500
Also other spare parts available with a delivery time, ask our sales for more information

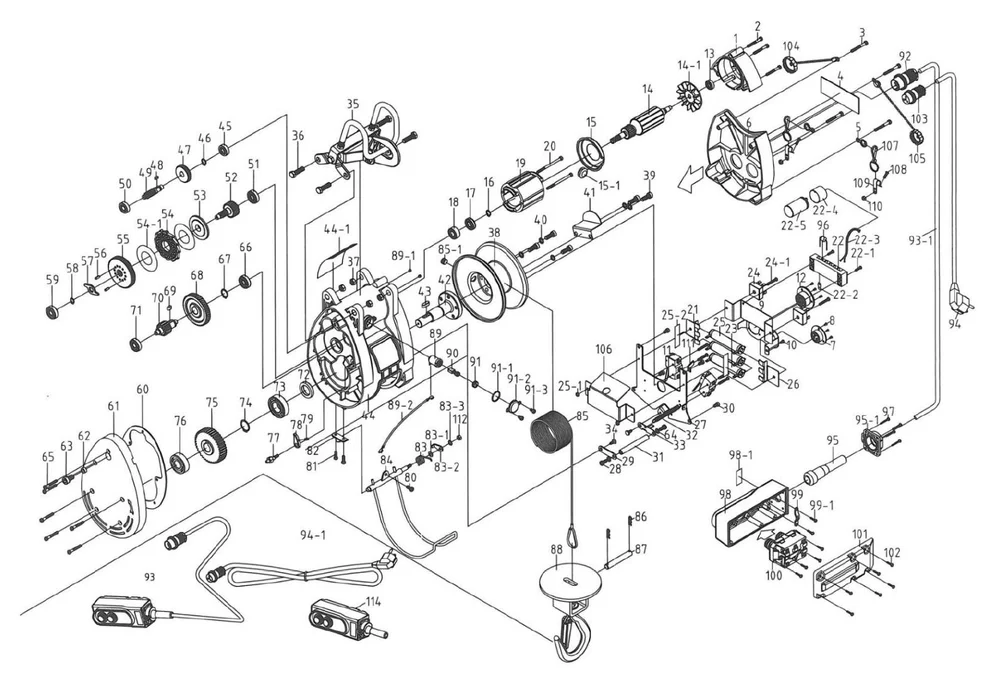

VAINOSH230

230V Electric wire hoists VAINOSH 230 components blueprint


VAINOSH300

230V Electric wire hoists VAINOSH 300 components blueprint

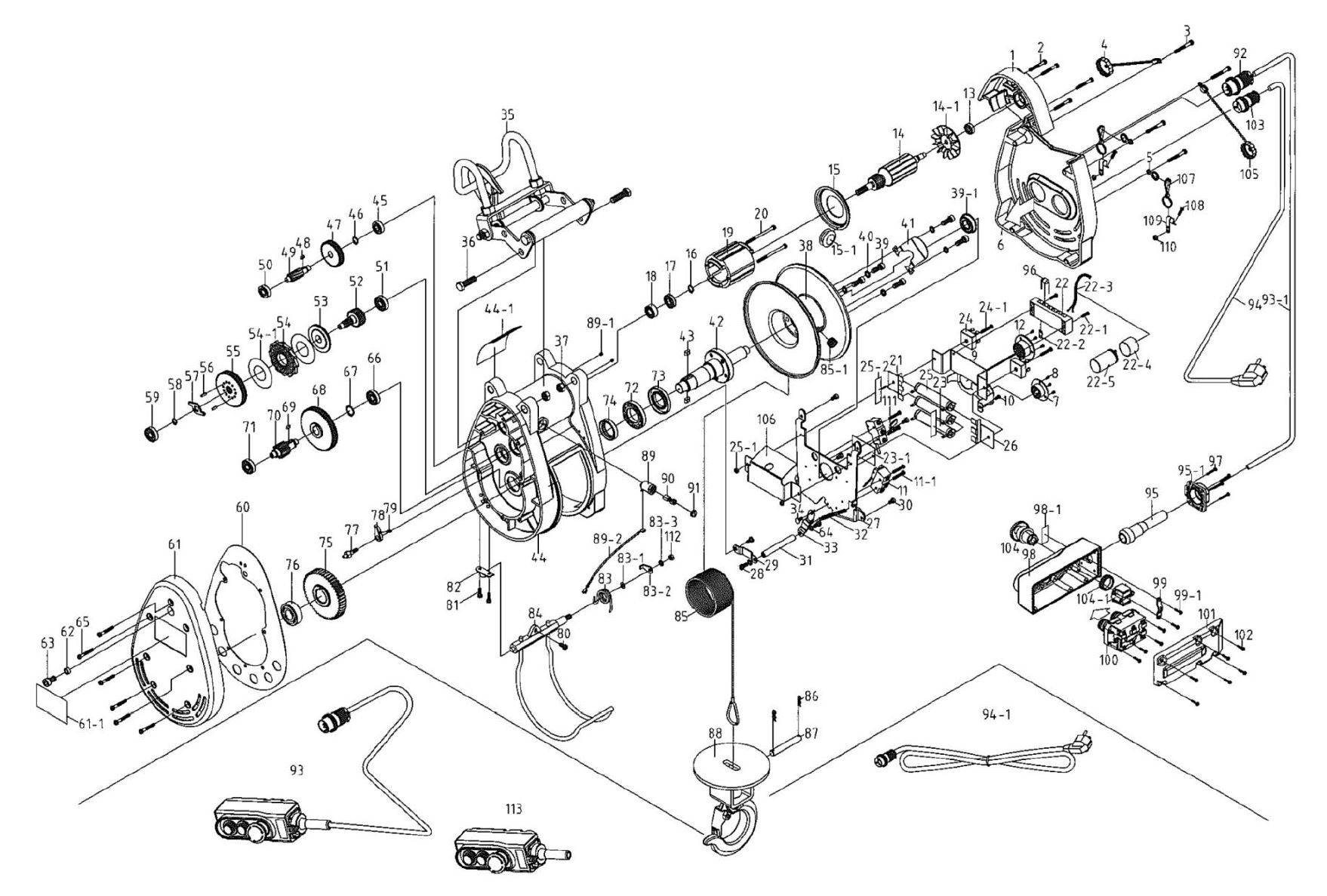

VAINOSH500

230V Electric wire hoists VAINOSH 500 components blueprint
