The Pulley Man winch can be installed in three ways, rotates 360 degrees and has an infinite cable.
- Light weight and portable
- Suitable to lift loads up to 600 kg (PM600)
- Suitable to pull loads up to 3000 kg
- Can be used with a cordless drill and power drill
- Possible to rotate the load 360°
- Standard rope length 12 meters
- Patented self-braking reduction brake
- 1 layer of paint

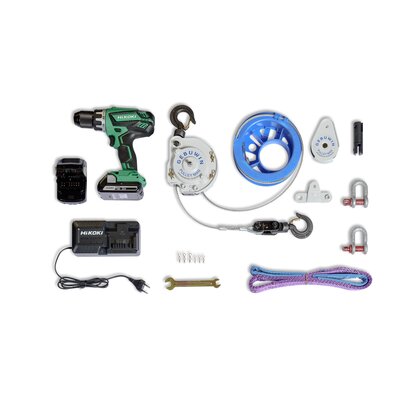

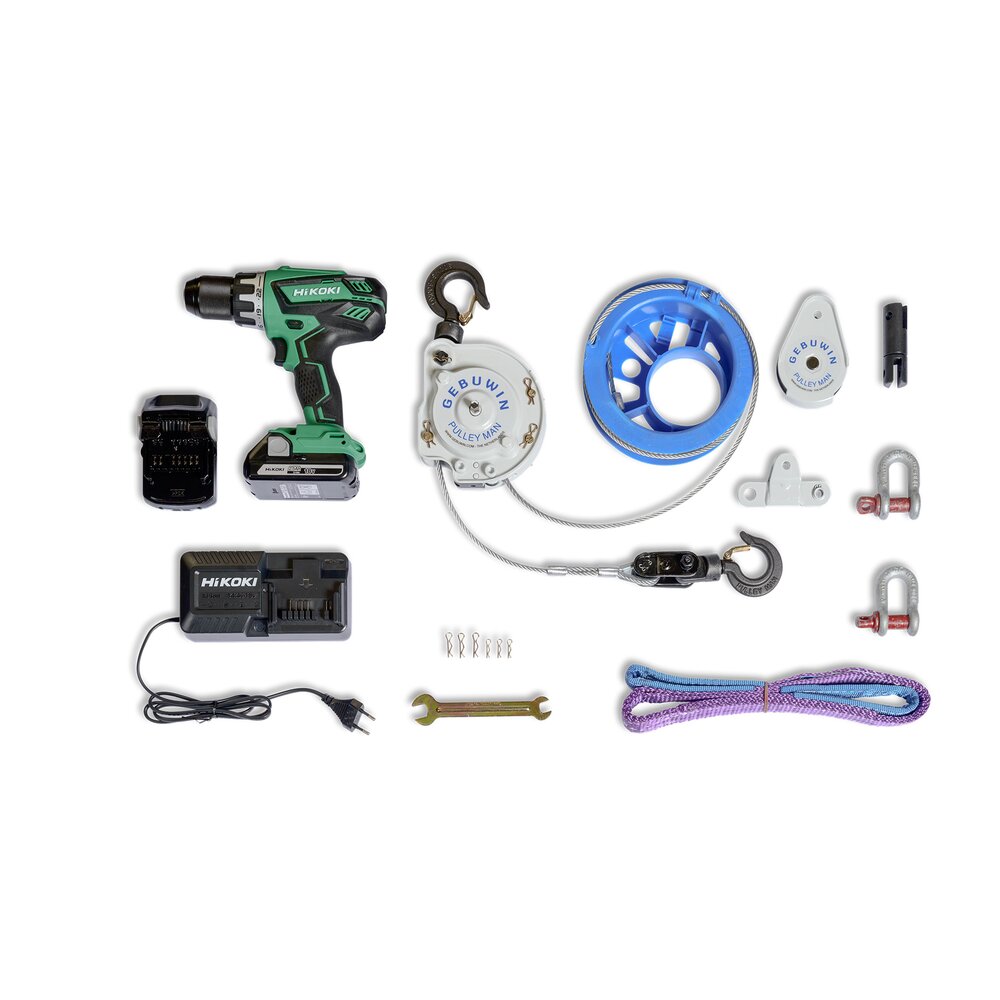

KIT including:
- Pulley Man PM300 or PM600

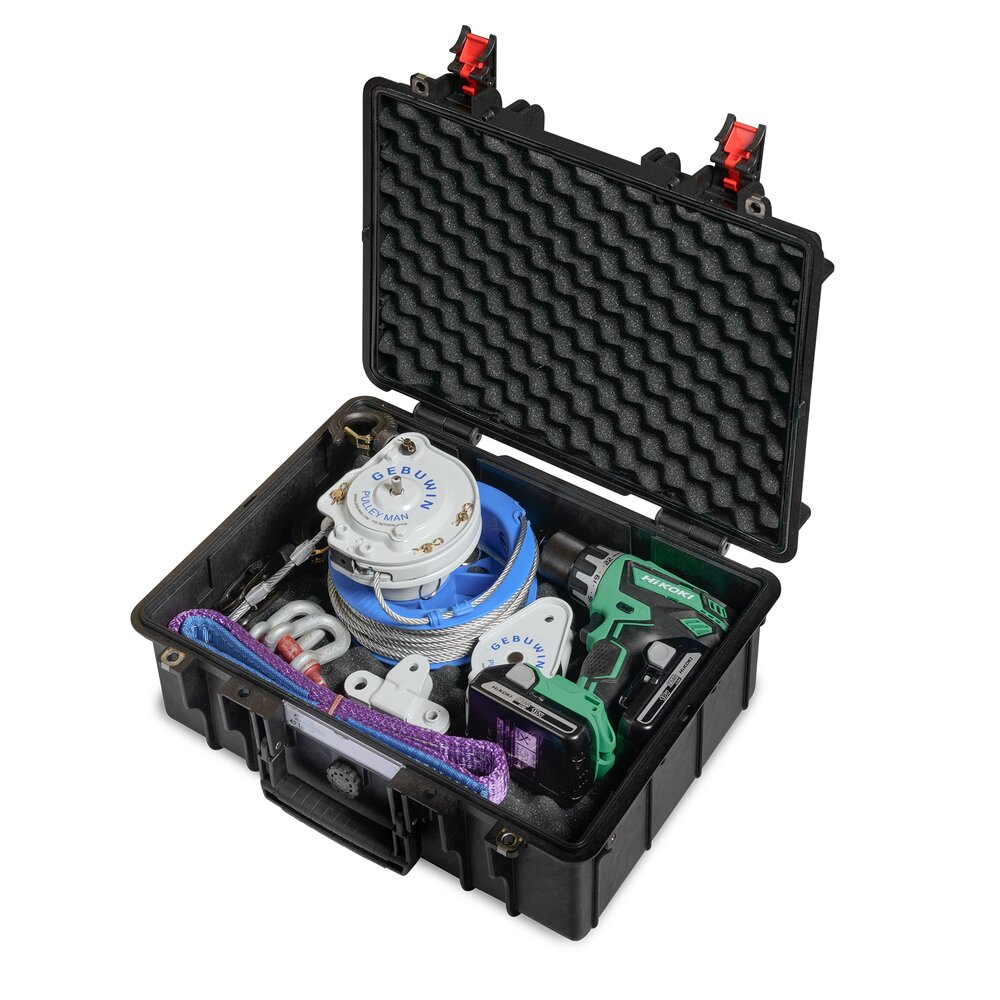

- Robust case with foam L: 457 W: 367 H: 183 - Brand: Explorercase
- Cordless drill 18V - 50 Nm - Brand: Hikoki
- 2 Li-ion batteries 18V - 2,5 Ah - Brand: Hikoki
- 1 charger - Brand: Hikoki
- 1 steel wire rope sling standard length 12 mtr
- 2 shackles type G-210 - Brand: Crosby
- 1 sling, length 1 m
- Marking: CE-marked
Maximum loading capacity at wheeled traction on a plane surface depending on the slope
| Gradient |
PM300 kg |
PM600 kg |
| 6° | 1500 | 3000 |
| 12° | 975 | 1950 |
| 16° | 825 | 1650 |
| 27° | 585 | 1170 |
| 35° | 450 | 900 |
