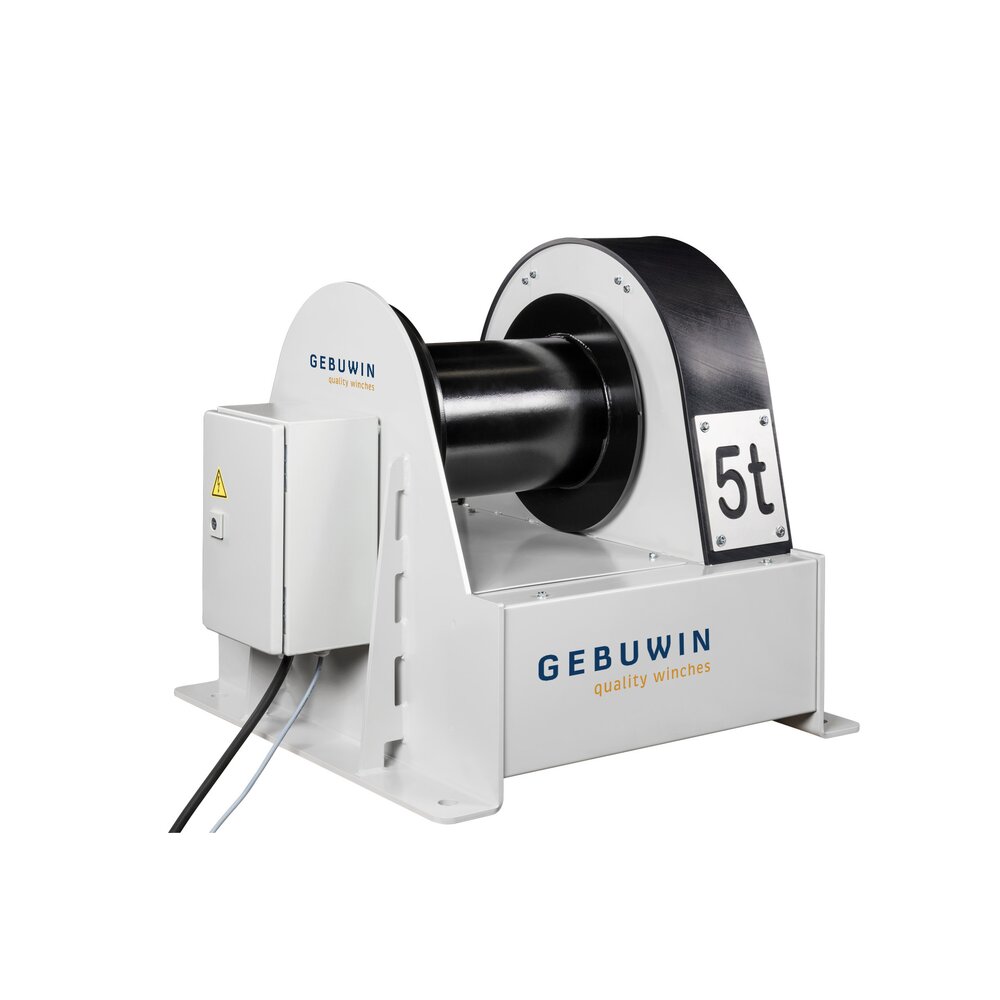

- robust and safe electric pulling and lifting winch 400 V / 230 V
- protection classification electric IP55 / mechanical IP54
- mechanical overload protection
- thermal protection electric motor
- low voltage (24 V) pendant switch with 2 m cable
- including 2 m power cable with 16A CEE plug

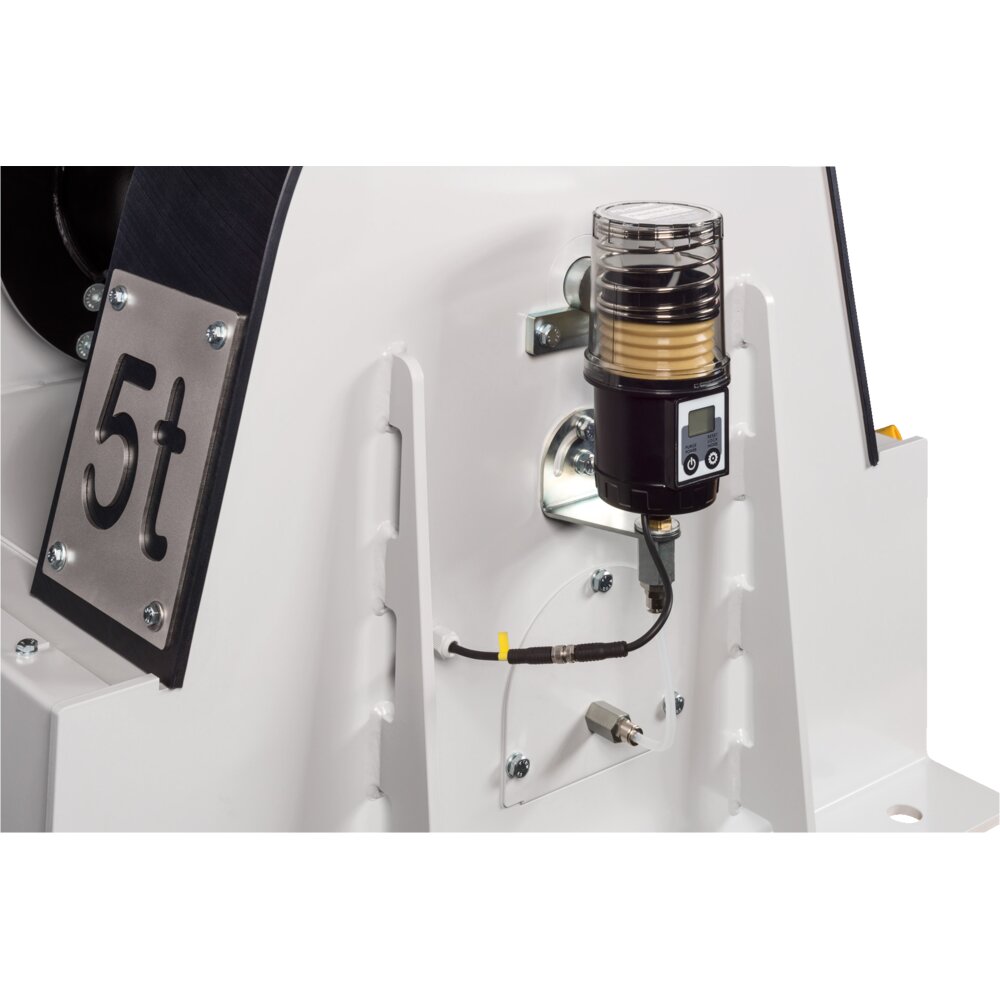

- automatic grease system for the worm gearing
- 1 layer of paint
Options:
- limit switch - required for lifting applications (LS)
- grooved drum (GD)
- 230V - 50Hz
- Material: Steel
- Marking: According to standard, CE-marked
- Temperature range: - 20°C up to + 40°C
- Finish: Painted, light grey
- Standard: EN 14492
- Note: Steel wire ropes must be ordered separately
