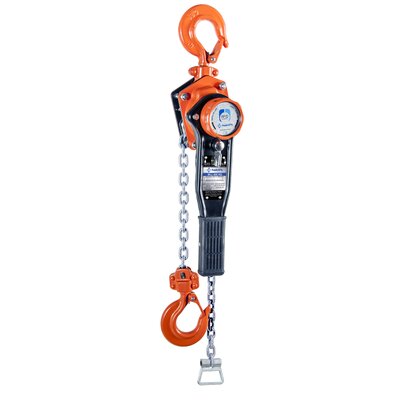

Haklift Lever Hoist is a hoist of high quality, it is durable and easy to operate using the ergonomic rachet lever. Construction is compact and light weight. The standard lifting height is 3 m. Other lifting heights are also available with fast delivery time from stock.
Features:
- Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
- Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
- Safe, well covered automatic load reaction brake
- Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
- The unique surface treatment gives excellent corrosion protection and low operating volume
- Swivel hooks at both ends makes in line positioning easy
- Hooks are designed to open at overload instead of breaking
- Hooks fitted with heavy duty steel safety latches
- Hook have Deformation Check Dots forged into side for overload detection
- RFID equipped (chip) for easy service and inspection, HF -13,56 Mhz
- Test certificate and Declaration of Conformity enclosed with each hoist
- Spare parts available
- Material: Durable all steel construction
- Marking: According to standard, CE-marked
- Finish: Orange / black Powder coated finish and plated frame components
- Standard: EN 13157
- Note: RFID equipped
SPARE PARTS
| Spare part (product code) | Description | Suitable for hoist (product code) |
| VTHA250AKO | Bottom hook | VTHA250 |
| VTHA250YKO | Top hook | VTHA250 |
| VTHA250JAR | Brake disc set (2 discs) | VTHA250 |
| VTHA250SAL | Latch kit (includes latches for both hooks) | VTHA250 |
| VTHA500AKO | Bottom hook | VTHA500 |
| VTHA500YKO | Top hook | VTHA500 |
| VTHA500JAR | Brake disc set (2 discs) | VTHA500 |
| VTHA500SAL | Latch kit (includes latches for both hooks) | VTHA500 |
| VTHA800AKO | Bottom hook | VTHA800 |
| VTHA800YKO | Top hook | VTHA800 |
| VTHA800JAR | Brake disc set (2 discs) | VTHA800 |
| VTHA800SAL | Latch kit (includes latches for both hooks) | VTHA800 |
| VTHA1600AKO | Bottom hook | VTHA1600 |
| VTHA1600YKO | Top hook | VTHA1600 |
| VTHA1600JAR | Brake disc set (2 discs) | VTHA1600 |
| VTHA1600SAL | Latch kit (includes latches for both hooks) | VTHA1600 |
| VTHA3200AKO | Bottom hook | VTHA3200 |
| VTHA3200YKO | Top hook | VTHA3200 |
| VTHA3200JAR | Brake disc set (2 discs) | VTHA3200 |
| VTHA3200SAL | Latch kit (includes latches for both hooks) | VTHA3200 |
| VTHA6300AKO | Bottom hook | VTHA6300 |
| VTHA6300YKO | Top hook | VTHA6300 |
| VTHA6300JAR | Brake disc set (2 discs) | VTHA6300 |
| VTHA6300SAL | Latch kit (includes latches for both hooks) | VTHA6300 |
| VTHA9000AKO | Bottom hook | VTHA9000 |
| VTHA9000YKO | Top hook | VTHA9000 |
| VTHA9000JAR | Brake disc set (2 discs) | VTHA9000 |
| VTHA9000SAL | Latch kit (includes latches for both hooks) | VTHA9000 |
| TALKE412 | Hoist chain | 4 x 12 mm | VTHA250 |
| TALKE515 | Hoist chain | 5 x 15 mm | VTHA500 |
| TALKE5617 | Hoist chain | 5,6 x 17 mm | VTHA800 |
| TALKE7121 | Hoist chain | 7,1 x 21 mm | VTHA1600 |
| TALKE1028 | Hoist chain | 10 x 28 mm | VTHA3200, VTHA6300, VTHA9000 |
| Also other spare parts available with a delivery time, ask our sales for more information |
