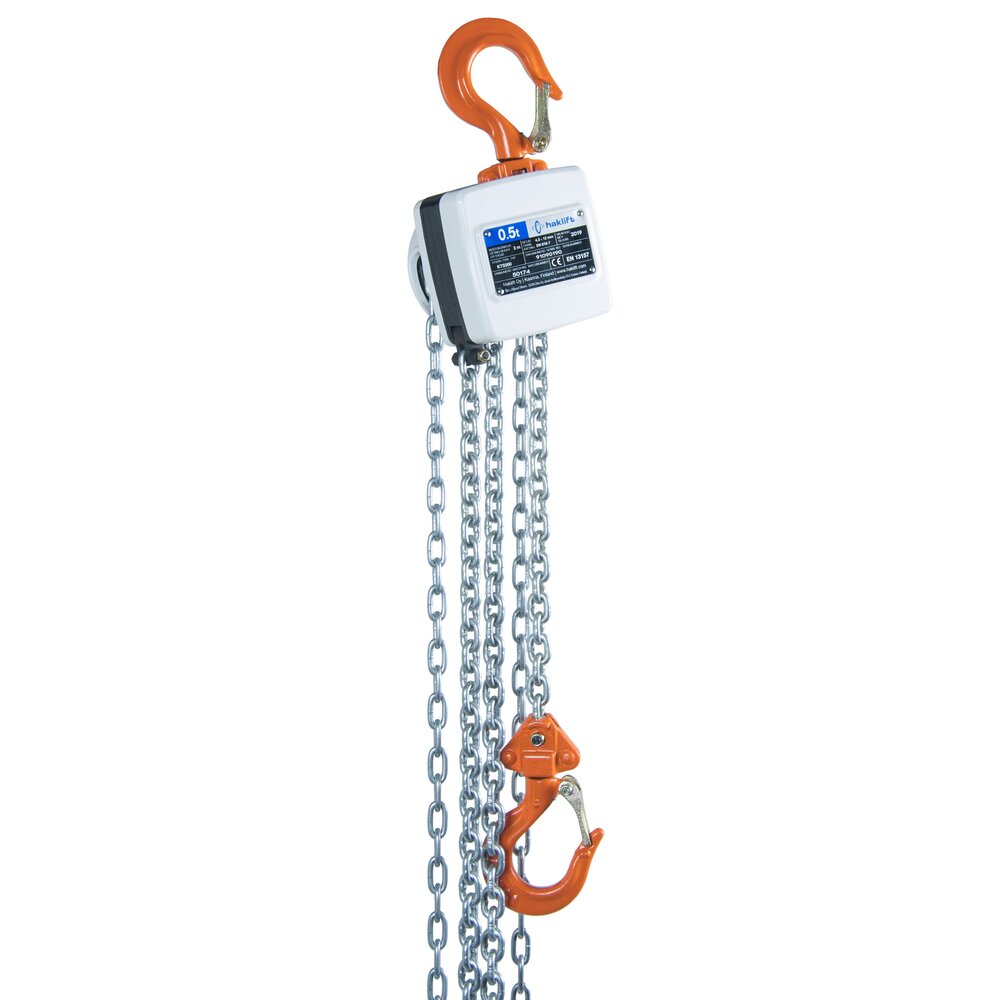

Quality and extra small aluminum chain block for professional use with a standard lifting height of 3 meters. Hooks are equipped with swivels. Other lifting heights are available with short lead times from the stock upon request.
- Material: Aluminium
- Marking: According to standard, CE-marked
- Finish: Painted, white / orange
- Standard: EN 13157
SPARE PARTS
| Spare part (product code) | Description | Suitable for hoist (product code) |
| KTS250AKO | Bottom hook | KTS250 |
| KTS250YKO | Top hook | KTS250 |
| KTS250JAR | Brake disc (1 pc) | KTS250 |
| KTS250SAL | Hook latch kit (1 pc) | KTS250 |
| KTSKK2512 | Hand chain | 2.5 x 12 mm | KTS250 |
| KTS500AKO | Bottom hook | KTS500 |
| KTS500YKO | Top hook | KTS500 |
| KTS500JAR | Brake disc (1 pc) | KTS500 |
| KTS500SAL | Hook latch kit (1 pc) | KTS500 |
| KTSKK3516 | Hand chain | 3.5 x 16 mm | KTS500 |
| KTS1000AKO | Bottom hook | KTS1000 |
| KTS1000YKO | Top hook | KTS1000 |
| KTS1000JAR | Brake disc (1 pc) | KTS1000 |
| KTS1000SAL | Hook latch kit (1 pc) | KTS1000 |
| KTSKK3516 | Hand chain | 3.5 x 16 mm | KTS1000 |
| KTS2000AKO | Bottom hook | KTS2000 |
| KTS2000YKO | Top hook | KTS2000 |
| KTS2000JAR | Brake disc (1 pc) | KTS2000 |
| KTS2000SAL | Hook latch kit (1 pc) | KTS2000 |
| KTSKK4822 | Hand chain | 4.8 x 22 mm | KTS2000 |
| KTS3000AKO | Bottom hook | KTS3000 |
| KTS3000YKO | Top hook | KTS3000 |
| KTS3000JAR | Brake disc (1 pc) | KTS3000 |
| KTS3000SAL | Hook latch kit (1 pc) | KTS3000 |
| KTSKK4822 | Hand chain | 4.8 x 22 mm | KTS3000 |
| TALKE3193 | Hoist chain | 3,1 x 9,3 mm | KTS250 |
| TALKE4312 | Hoist chain | 4,3 x 12 mm | KTS500 |
| TALKE56158 | Hoist chain | 5,6 x 15,7 mm | KTS1000 |
| TALKE824 | Hoist chain | 8 x 24 mm | KTS2000 |
| TALKE7120 | Hoist chain | 7,1 x 19,9 mm | KTS3000 |
| Also other spare parts available with a delivery time, ask our sales for more information |
