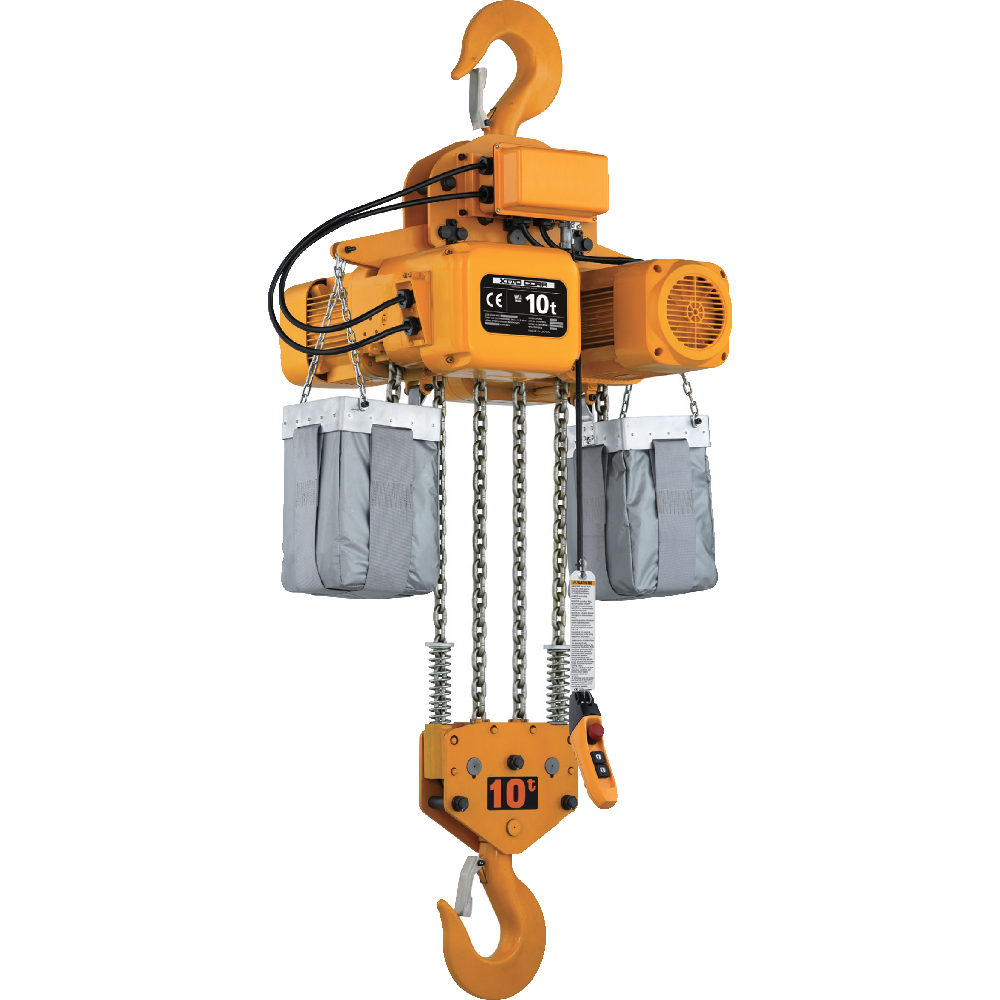

Electric chain hoist with hook suspension
General: The KITO ER2 Electric Chain Hoists are durable, safe and easy to use hoists. It has a top hook or overhead mounting suspension, aluminium die-cast body, electromagnetic brake and a canvas chain container.
It lifts from 10 tons up to 20 tons.
Standard configuration:
- 400 V/50 Hz
- Contactor control for single speed
- CH-Meter: operating hours/number of starts
- Ergonomic push button control
- Upper-lower limit switch
- Nickel-plated load chain class grade 80 (DAT) in accordance with Norm EN 818-7
- Thermal protector
- Carbon friction clutch
Options:
- 500 V/Contactor control
- 230 V/50 Hz/60 Hz, 3 phase
- Rubber bumpers for motorized trolleys
- Additional mechanical brake
- Electrical overload limiter
- Acoustic overload signal
- Radio remote control
- Variable speed control
- Level limit switch
- Steel chain container
- Trolley versions: motorized, geared and plain
Standard preconfigured hoist (lifting height 3m, pendant control cable 2,5m)
Dimensions
|
WLL
|
Product
|
Min. headroom C
|
D
|
a
|
b
|
w
|
g
|
|
tons
|
code
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
10
|
ER2-100S
|
1370
|
1210
|
798
|
849
|
956
|
80
|
|
15
|
ER2-150S
|
1595
|
1520
|
798
|
1022
|
1129
|
86
|
|
20
|
ER2-200S
|
1710
|
1600
|
798
|
1198
|
1305
|
102
|
